Installation

DMP Xpress Installation Guide (Gen 4)

Step 1

Plug audio into player.

Please contact your IT or maintenance department on how to connect to the in store audio system

Step 2

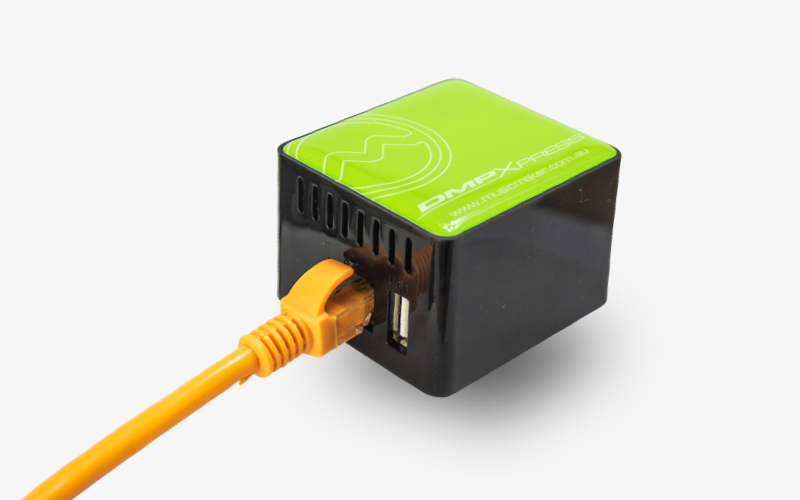

Plug network cable into player

Please contact your IT or maintenance department on how to connect to the in store network.

Step 3

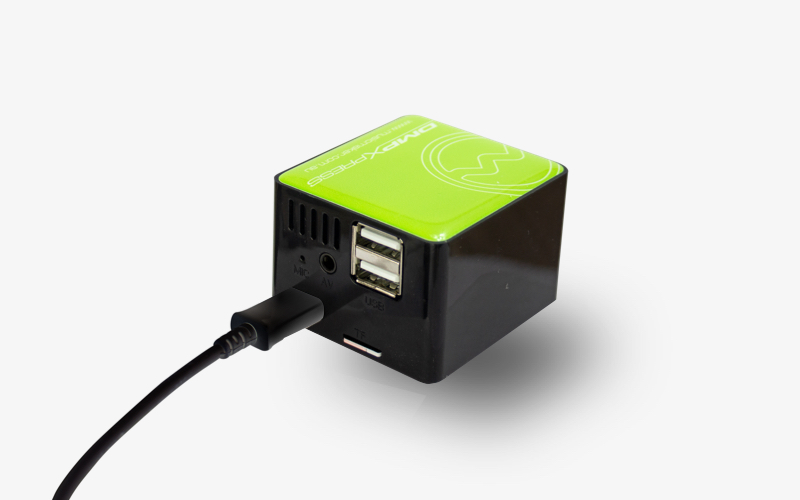

Plug power into the player (micro USB)

Plug micro USB into the DMP power socket.

Step 4

Power On

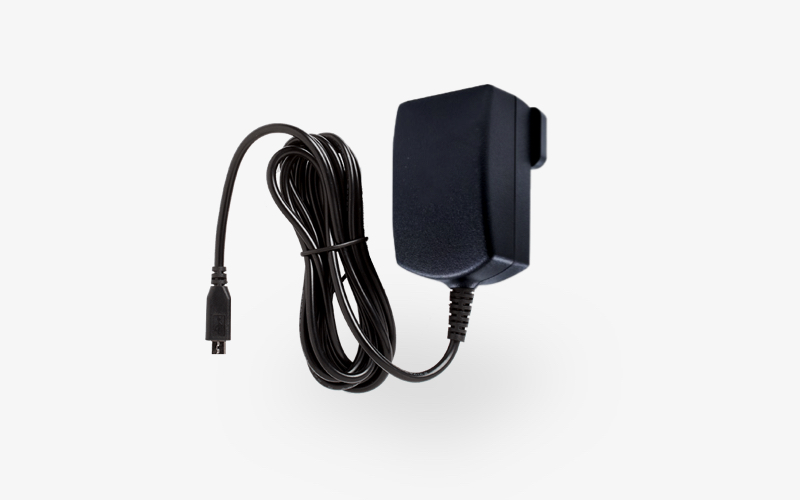

Plug power pack into the wall socket and turn the power on.
Music will begin to play shortly.

DMP Xpress LED Status Indicator

General Status
  • Green flashing – Player is booting
  • Green solid – Player is operating as normal
  • Blue flashing – Player update is in progress

Error Status
  • Red flashing – Player cannot connect to the server
  • Red solid – Player cannot connect to the local network (no IP address provided)
  • Red beacon (flash… flash flash) – Player is in an errors state. Please contact us.
